DIAMOND ANTENNA

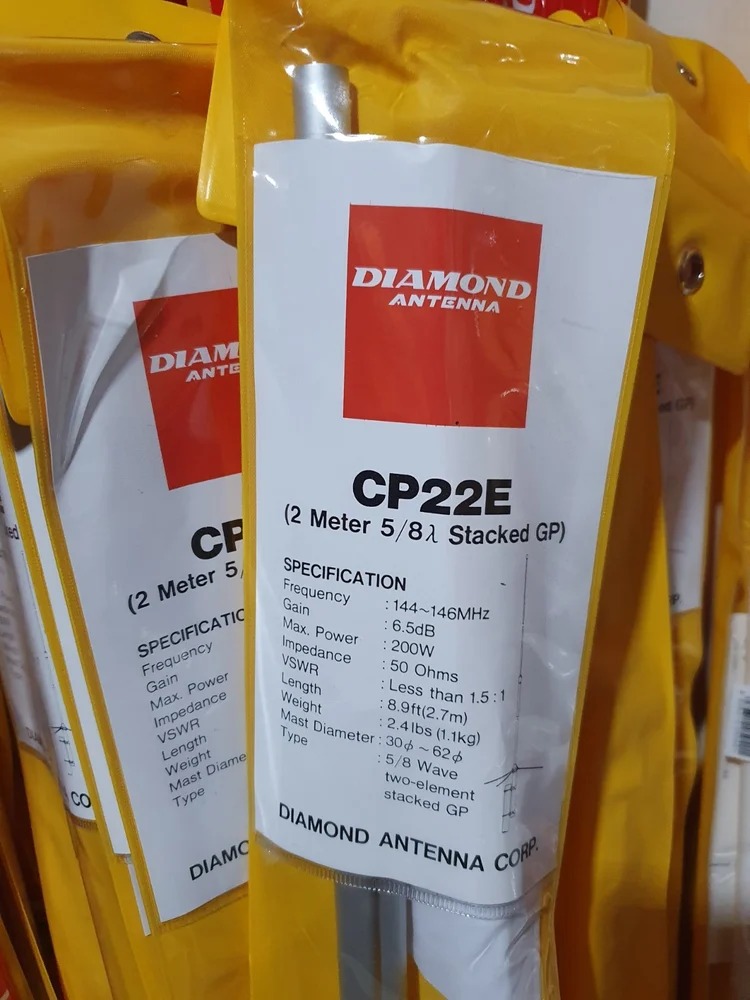

CP22E
-

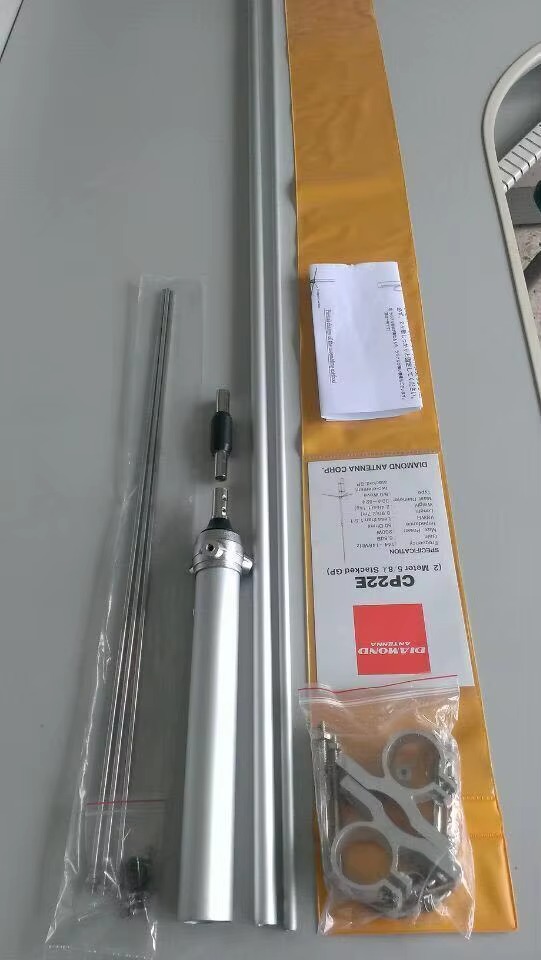

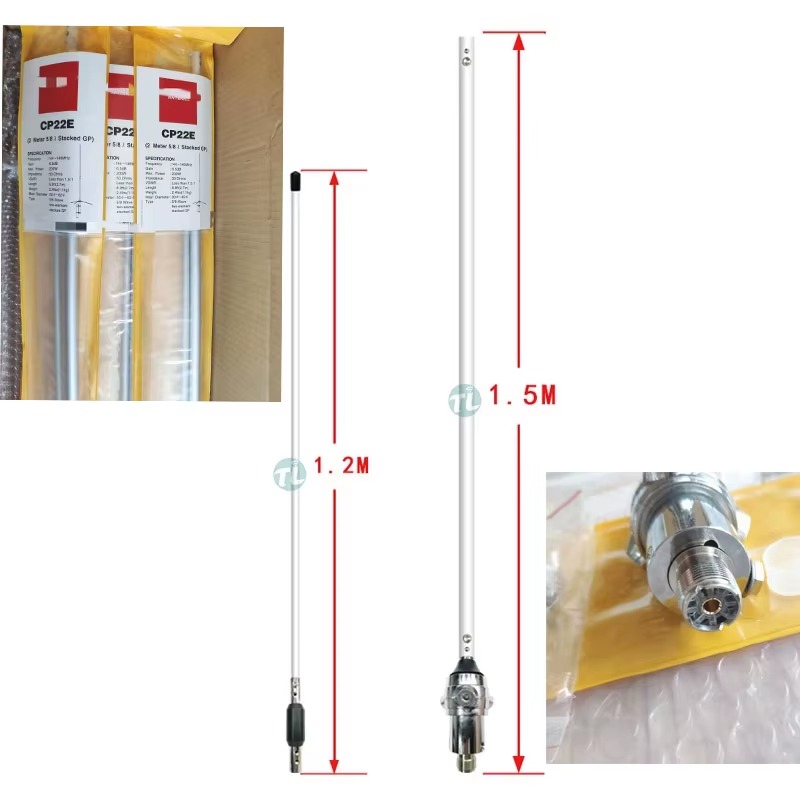

Assembly InstructionsCP22E High-Gain Monoband Antenna The CP22E is a high-gain monoband antenna made from heavy-duty aluminum construction, at a price your pocket book will like! Rated at 6.5dB gain, the CP22E is an excellent performer, easy to install and would be your best value in an aluminum 2 meter antenna. Frequency 144-148 MHz Gain 6.5dB Power 200 watts Connector UHF Length 8.9' Wind Rating 70 mph Element Phasing 2-5/8l
Radiation PatternDUAL BAND WHIP ANTENNA WITH GROUND PLANE KIT
-

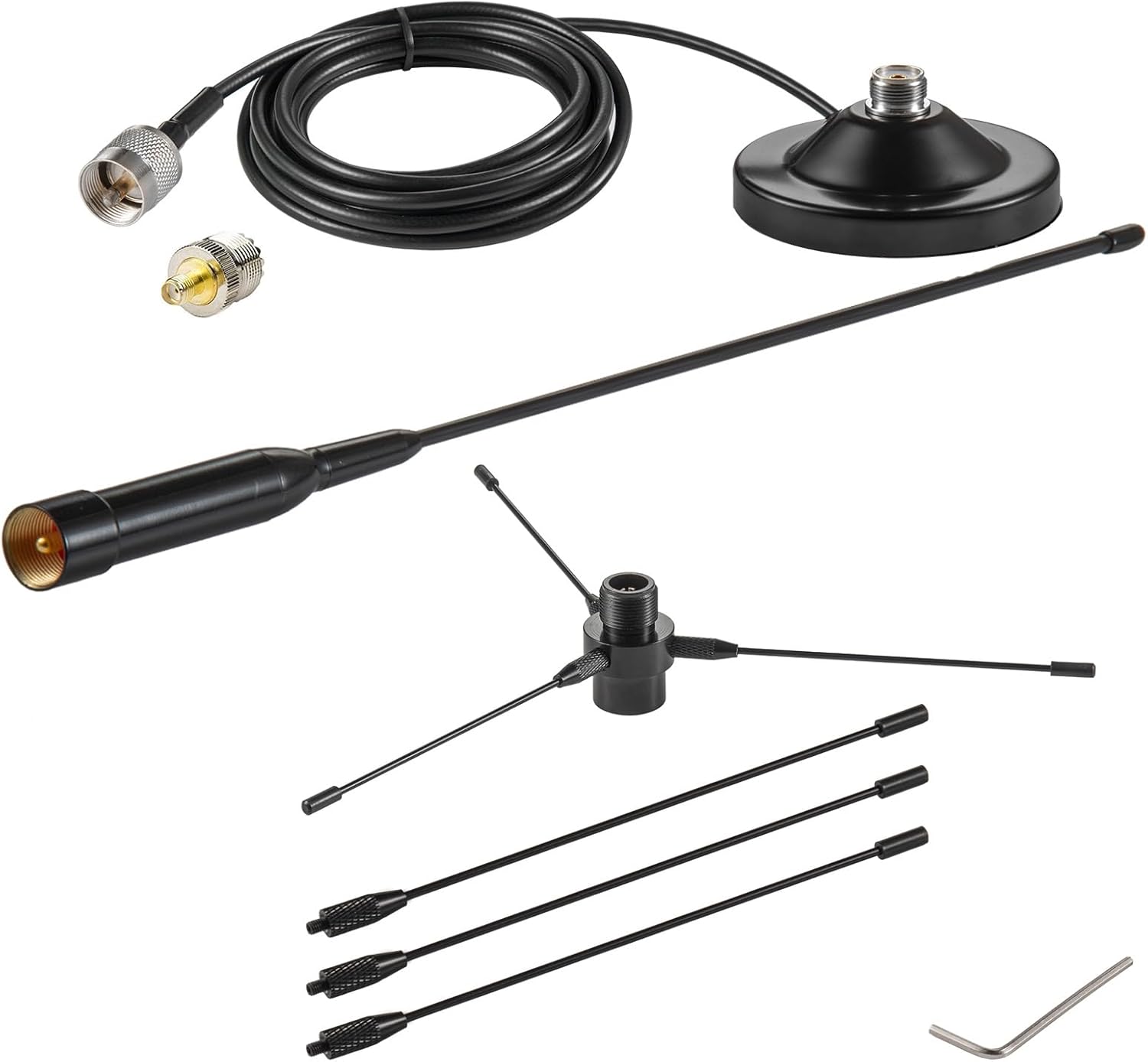

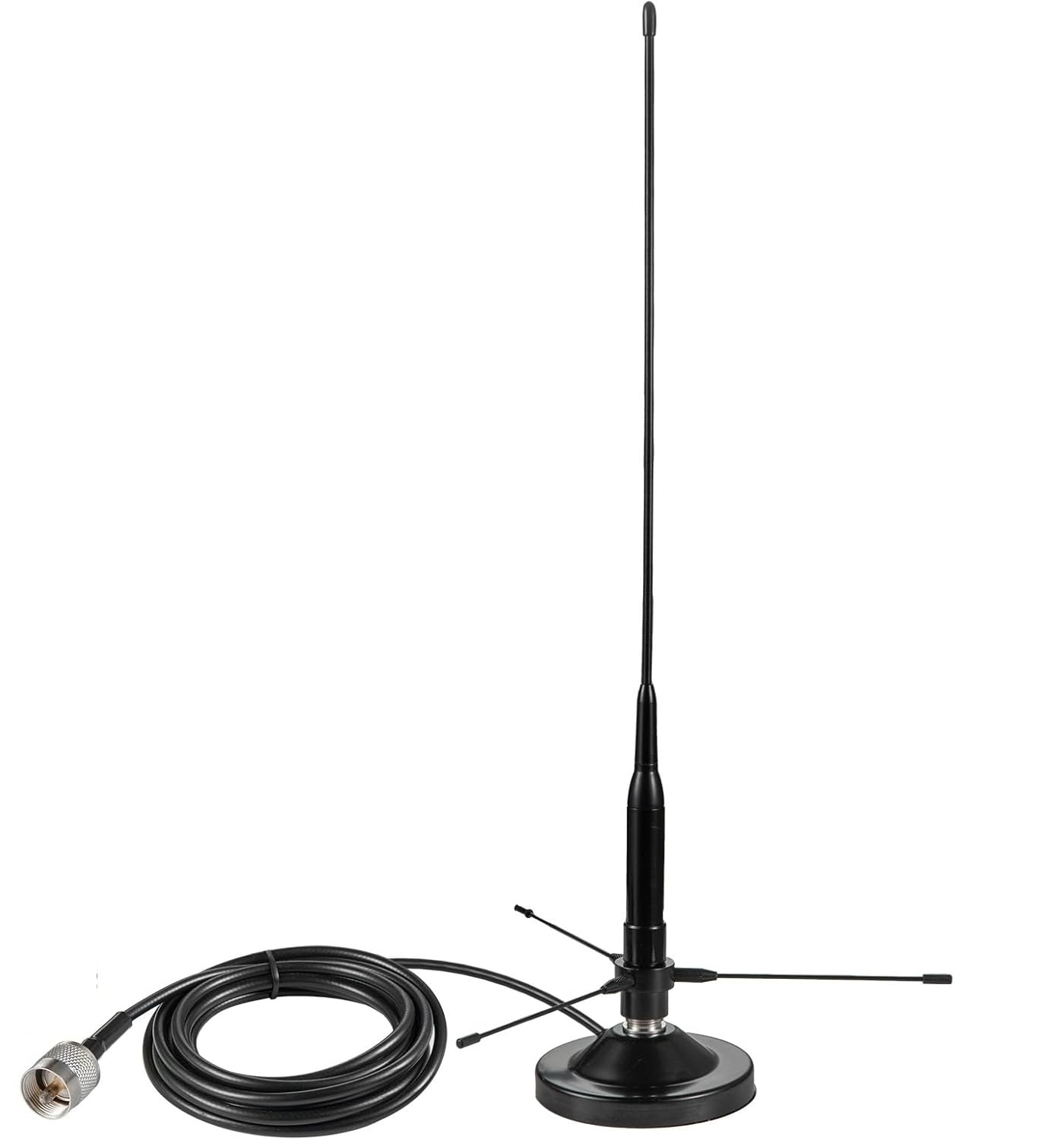

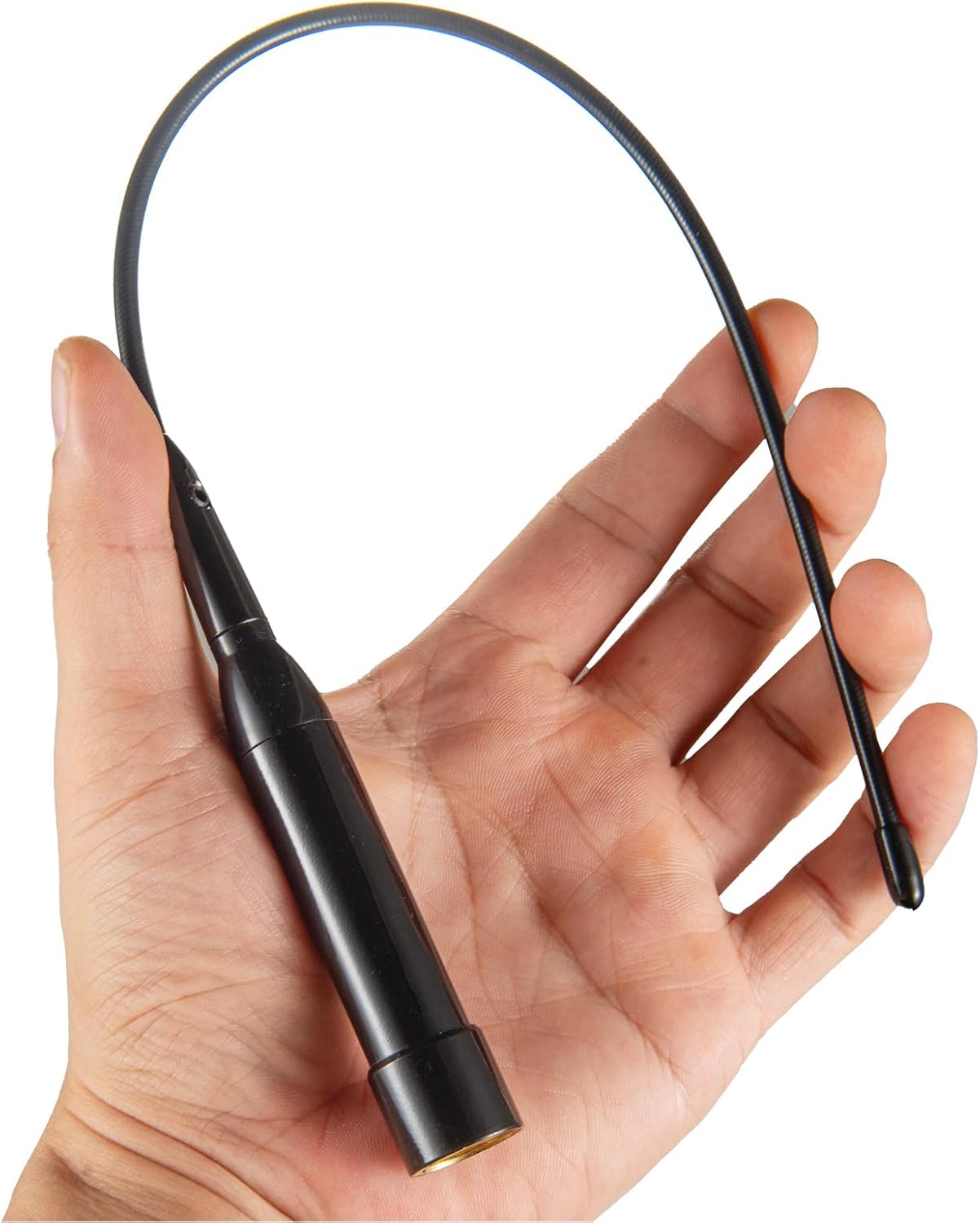

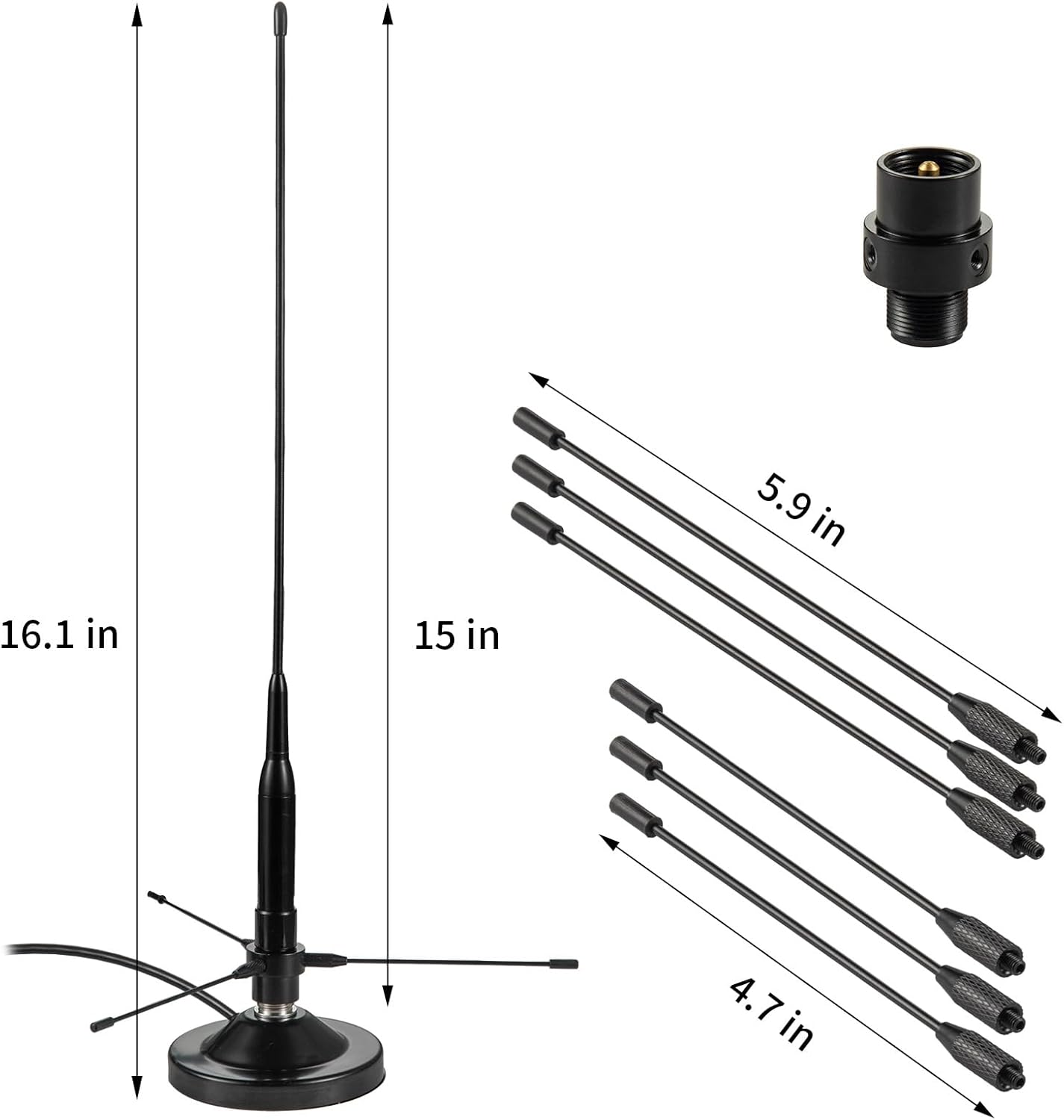

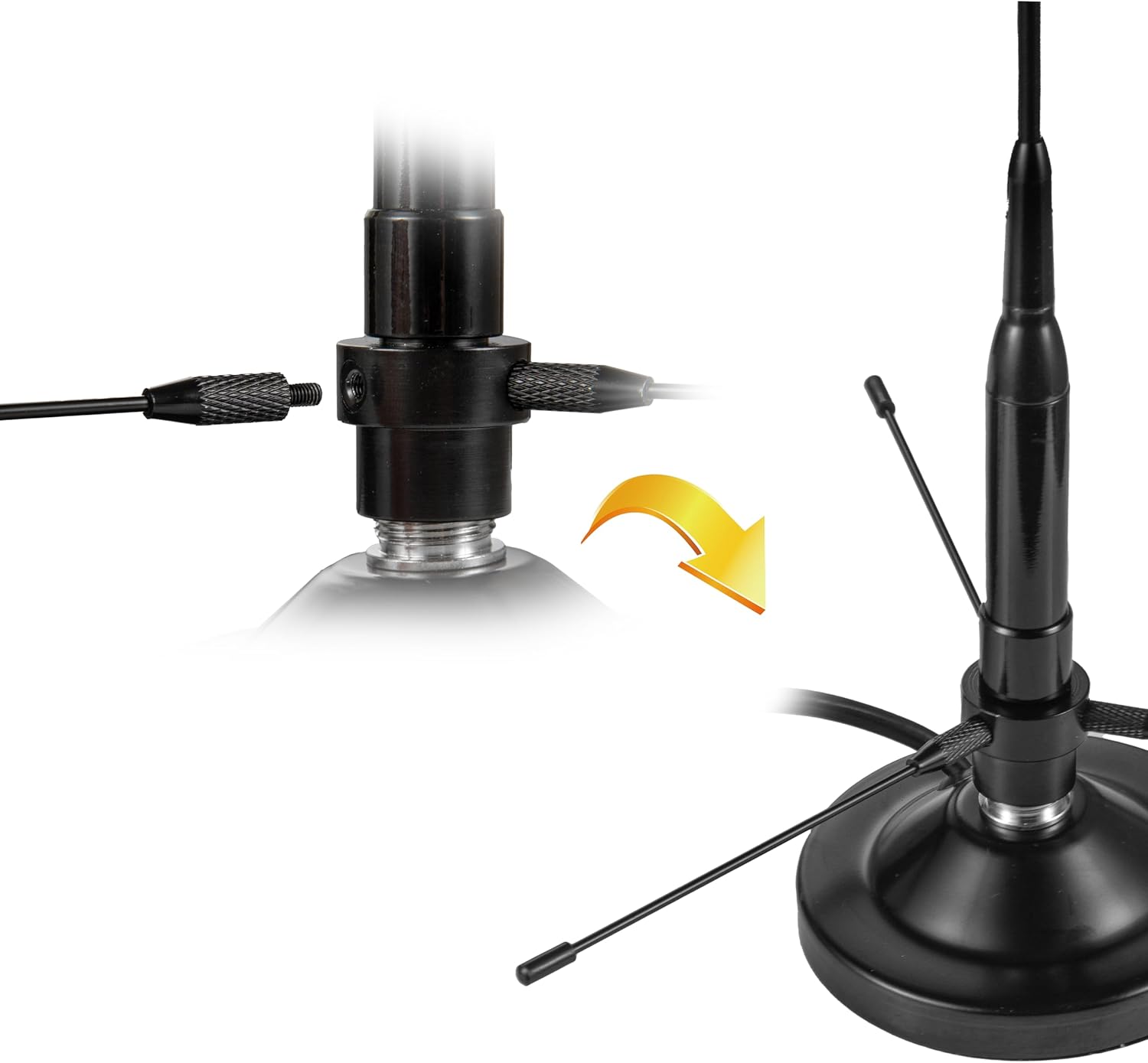

DUAL BAND WHIP ANTENNA WITH GROUND PLANE KIT This antenna with ground plane kit is rofessionally designed to be used in the 144/430 MHz frequency range bands, so it will easily pick up signals from both 2 meter and 70 centimeter bands; With ground plane kit that can be easily mounted for enhanced signal reception and sensitivity, short whip: 12cm/4.7inch (for UHF 400-470MHz) ; long whip: 15cm/5.9inch (for VHF 136-174MHz) ; Gain:8dBi; Antenna Feature: Strong Magnetic Base Mounting 9cm/3.54inches(Not NMO BASE MOUNT); Antenna Length: 41cm/16.1inches; Antenna Cable: 5m/16.4ft RG58/U Cable;Cable End Connector: UHF PL259 Male Plug；Impedance: 50 ohm; Adapter: SO239 to SMA Female Adapter; Compatible with VHF UHF Band Marine Boat VHF Radio, Mobile Radio, Ham Radio, GMRS Radio, Walkie Talkies, Two Way Radio etc...（Not for 27MHz Radios Devices） Compatible with a variety of radios, including BTECH, ICOM, Kenwood, Midland. Yaesu.TYT, AnyTone, Cobra, Uniden Amateur radio two way radio and BaoFeng Mobile Radios, Marine Boat VHF Radio etc. Packing including: 1 x Whip Soft Antenna, 1 x Magnetic Base with 16.4ft RG58/U Cable, 3 x Short Ground Planes, 3 x Long Ground Planes M150
-

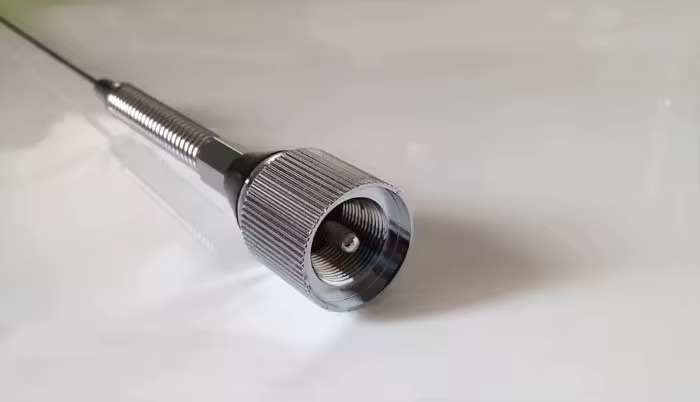

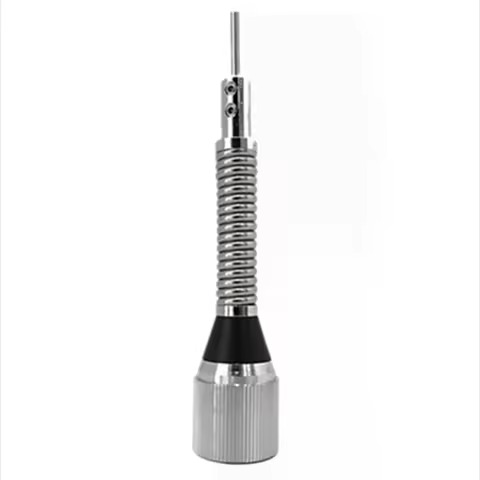

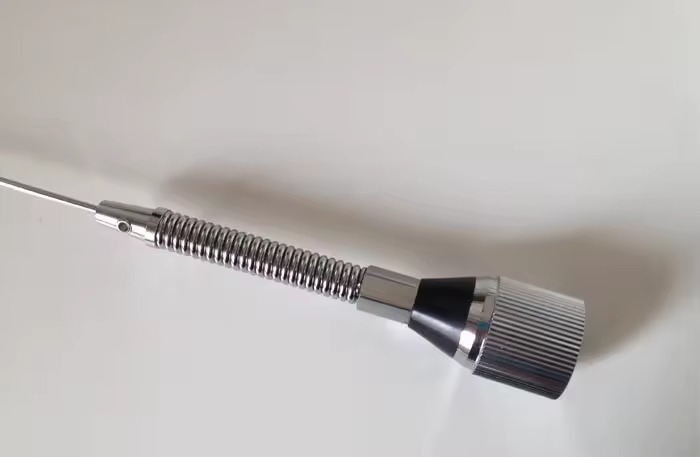

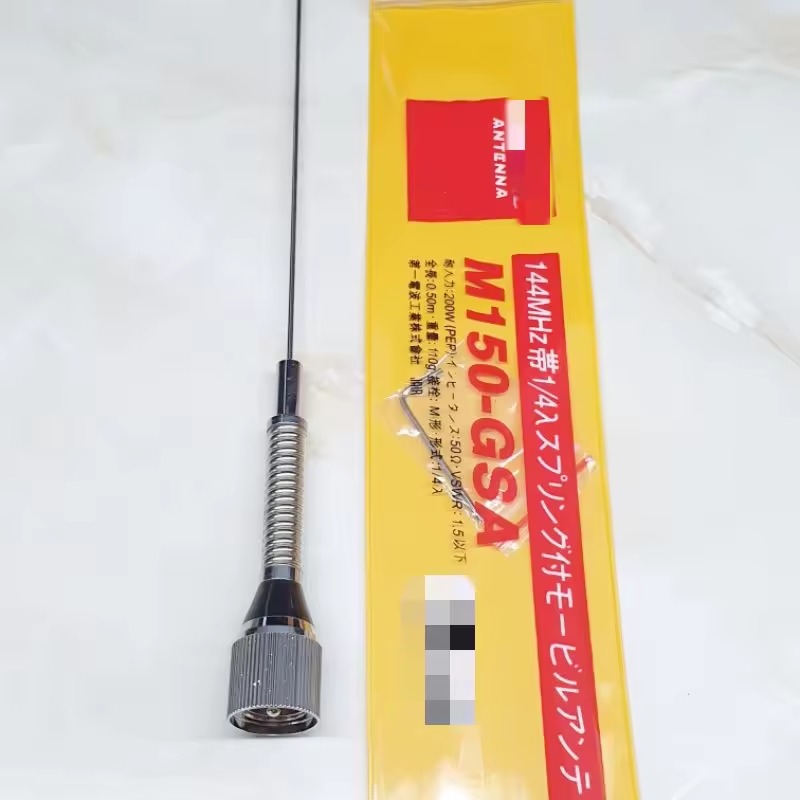

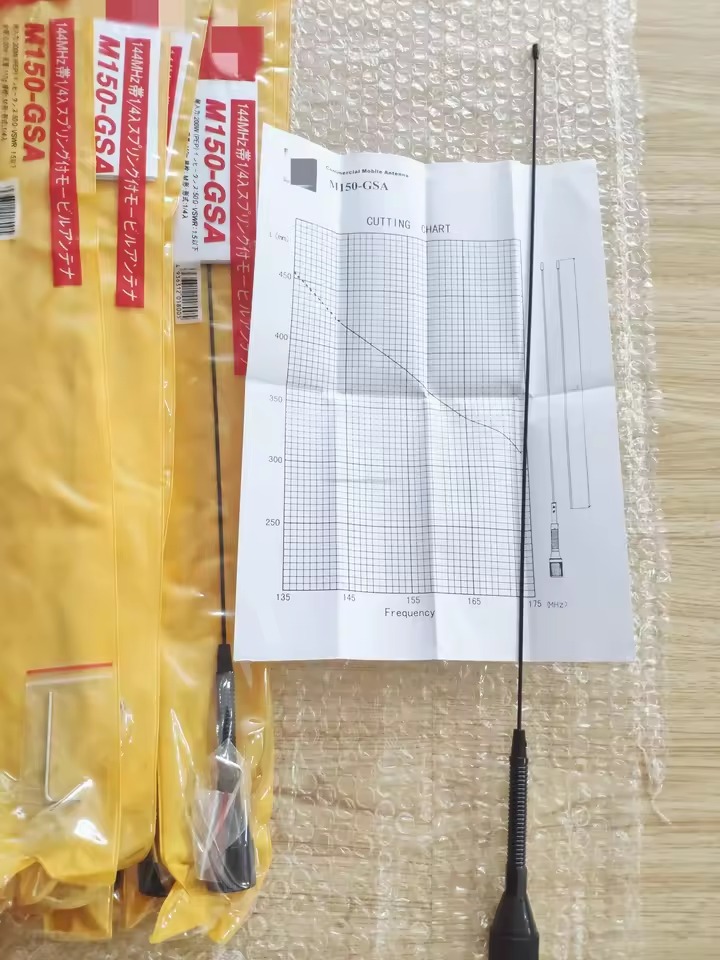

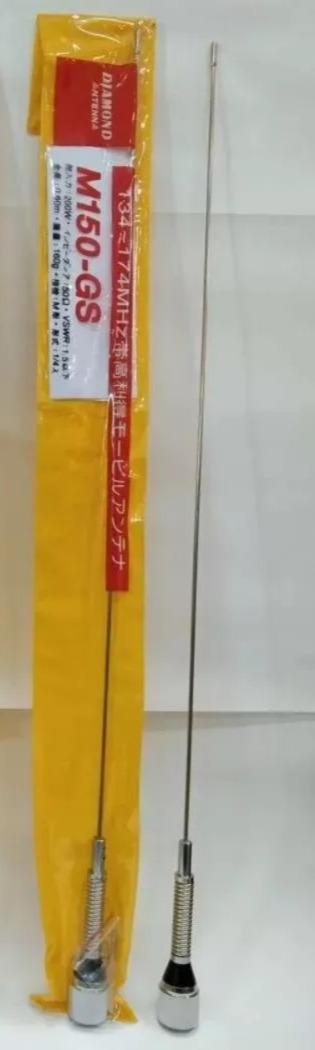

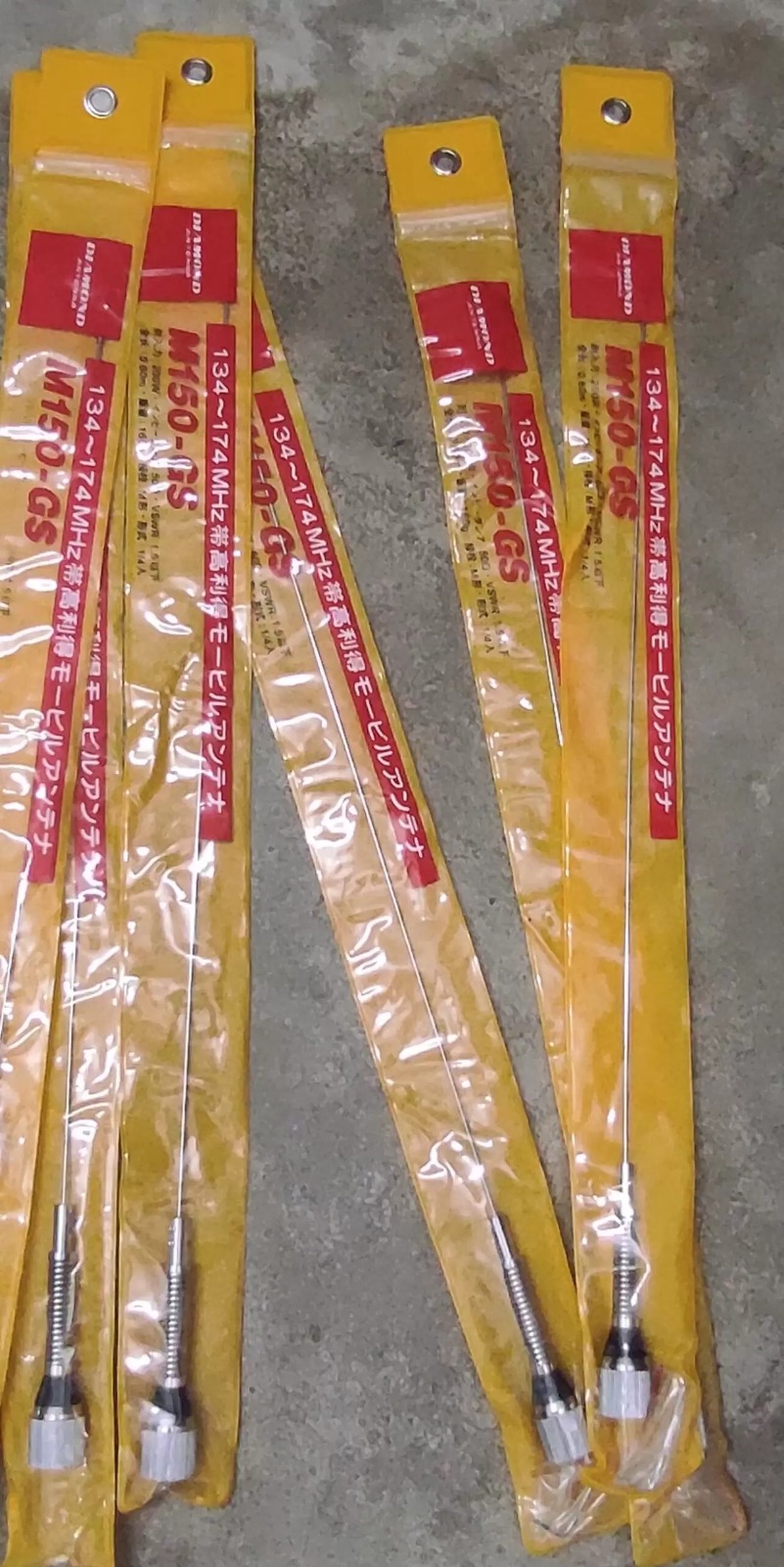

Key features of Diamond M150GSA VHF Mobile Antenna Type 1/4 λ bottom spring Frequency 144-174 MHz Gain 2.15 dB Power 200 Watts Impedance 50 Ohms VSWR 1.5:1 (nominal) Length 0.51m Weight 110 g Connector UHF-male MC101
-

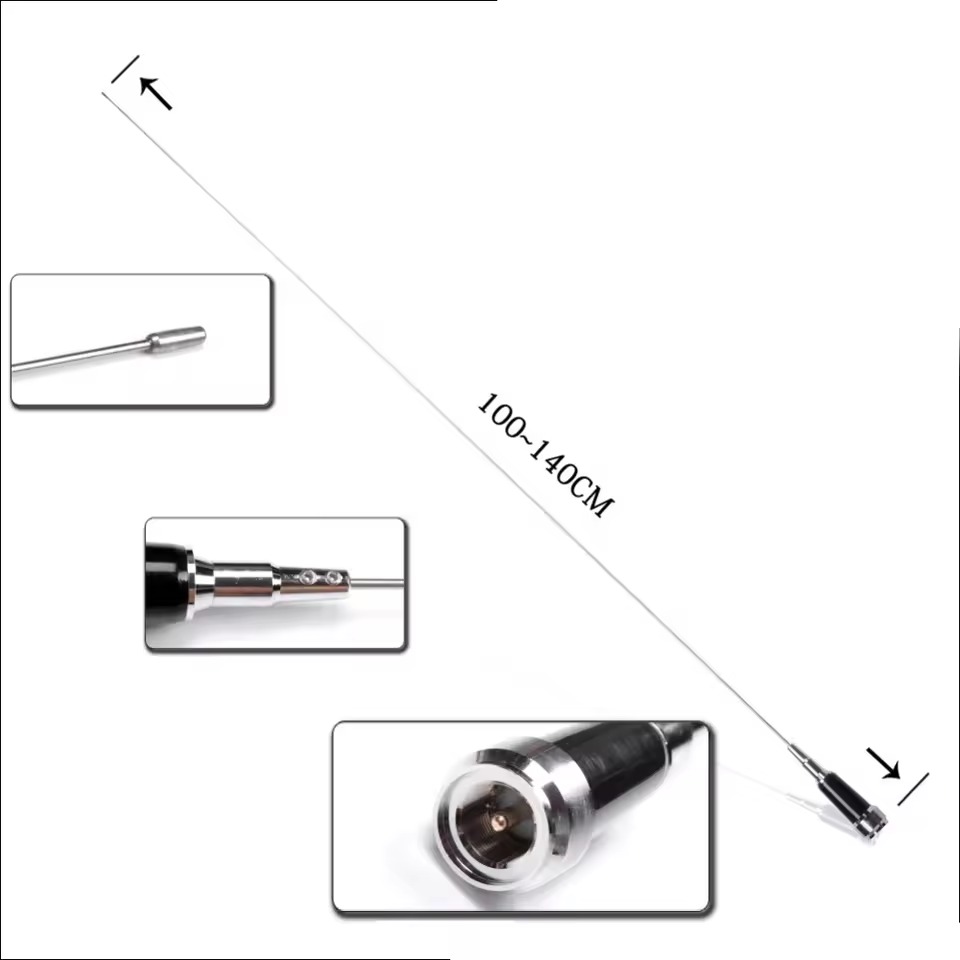

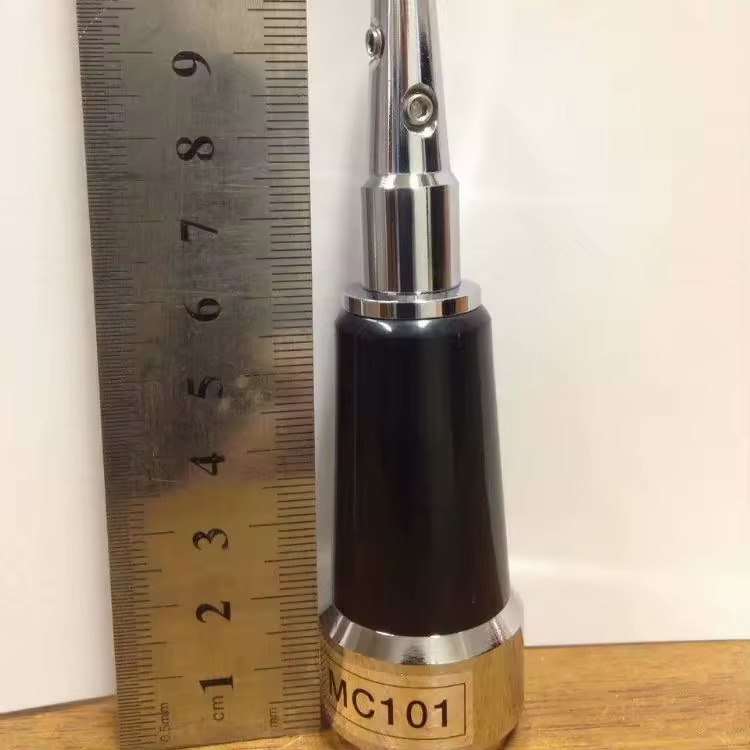

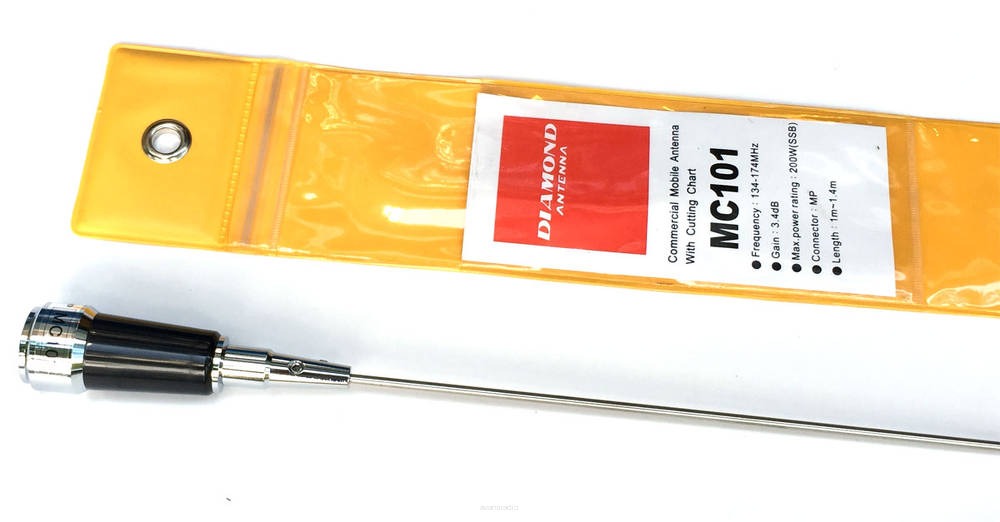

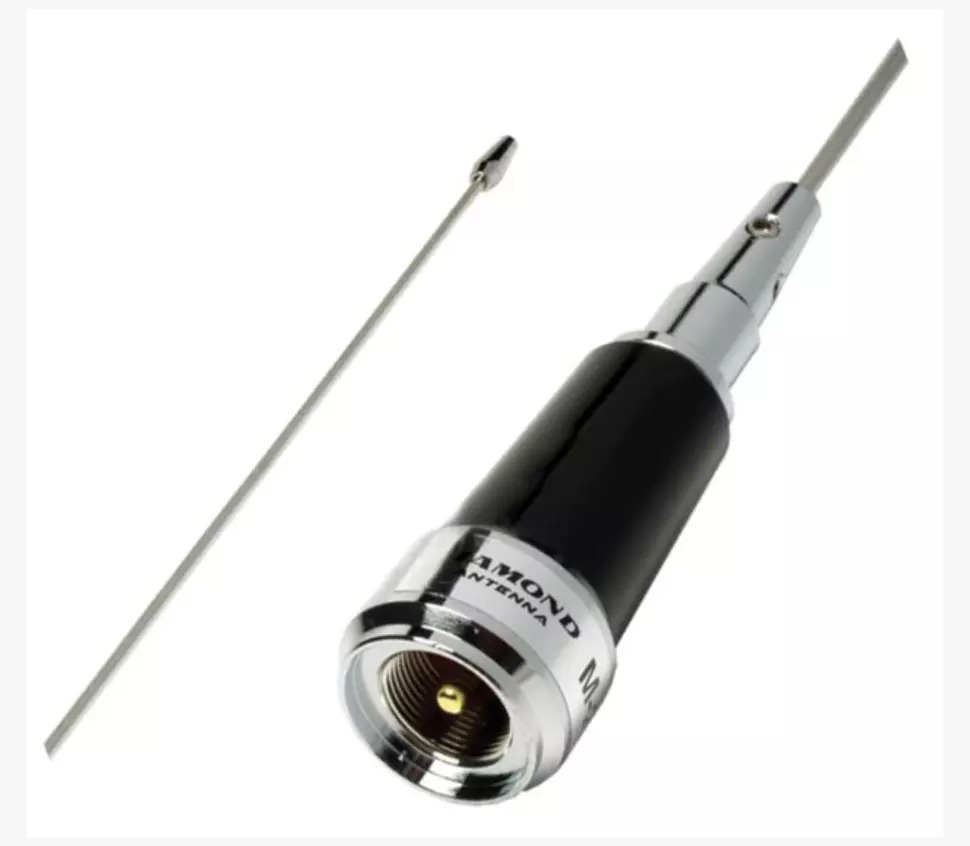

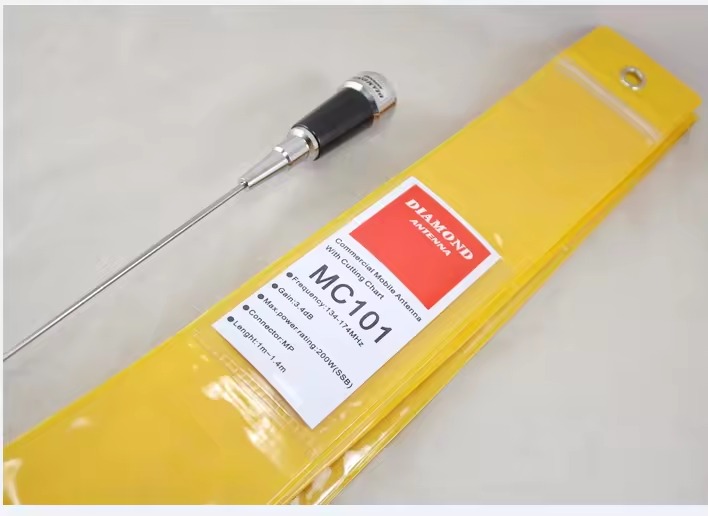

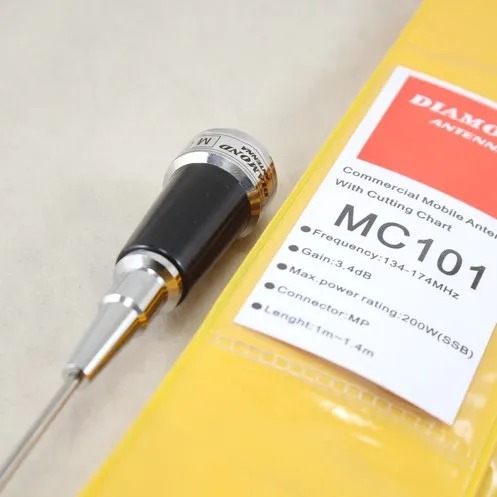

Key features of Diamond MC-101 VHF Mobile Antenna Type 5/8 λ mobile whip Frequency 134-174 MHz Gain 3.4 dB Power 200 Watts Impedance 50 Ohms VSWR 1.5:1 (nominal) Length 1.42m Weight 180 g Connector UHF-male SG-M507
-

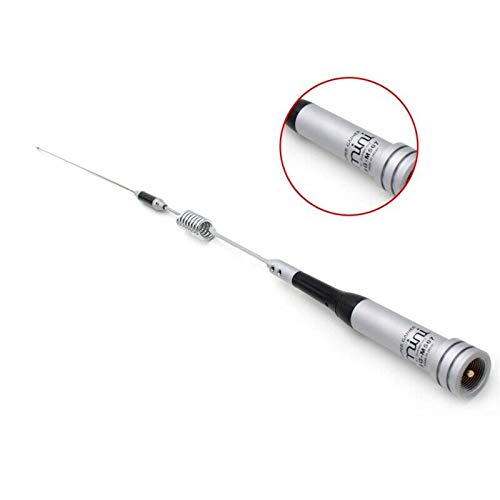

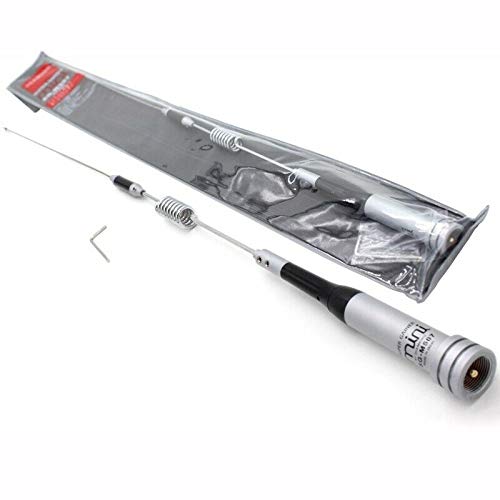

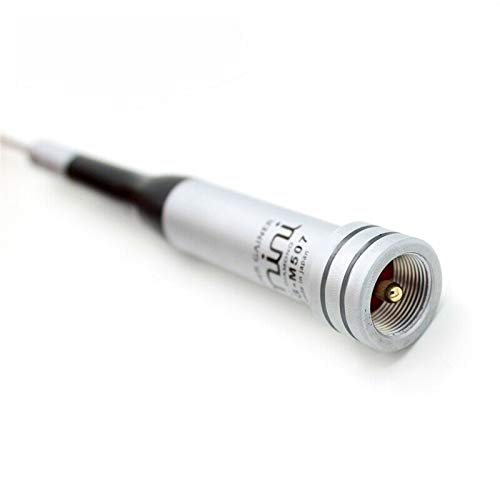

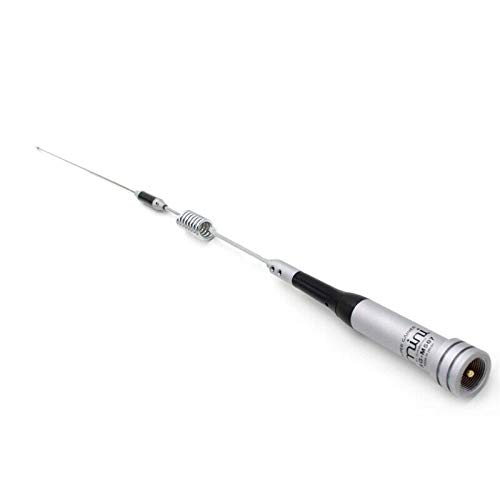

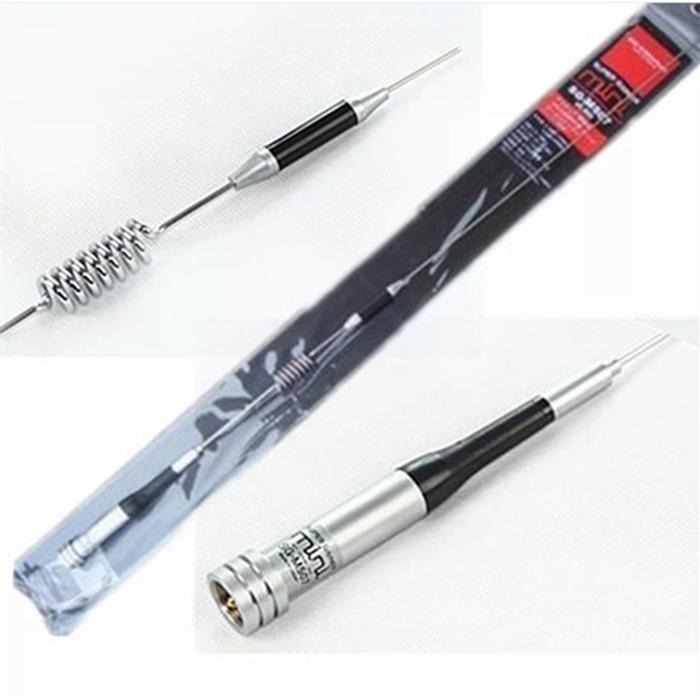

The SG-M507 Super Gainer MINI Antenna is a high-performance dual-band antenna designed for both VHF (144-148 MHz) and UHF (430-450 MHz) communication. Compact yet powerful, it enhances the range and clarity of your handheld or mobile radios, making it a reliable upgrade from standard stock antennas.
Built with a durable and lightweight design, the SG-M507 is ideal for professionals in security, surveillance, emergency services, and commercial communication, as well as amateur radio operators. Its mini form factor ensures easy portability without compromising on signal strength.
SG-M507 Connector UHF/SL16-J/M Type Band Dual Band 144/430MHz Frequency Range UHF/VHF Gain 2.15/5.2dBi Max Power 70Watts V.S.W.R Less than 1.5 Impedance 50ohm Antenna Length 73cm Polarization Vertical Radiation Omni Connector Size 16mm (Diameter) Type 1/2 wave radialless(144MHz), 2x5/8 wave radialless(430MHz)
